MobBob V2 Remix – Smart Phone Controlled Robot

[Update 20160111]
Add test video and photos

[Update 20160109]
Modify MobBob2_Remix_Jacket_L.stl
Modify MobBob2_Remix_Jacket_R.stl
Modify MobBob2_Remix_Battery_Mount_Cover.stl

[Update 20160105]
Add Shield board file Arduino_Nano_Shield_REV3.brd [Eagle CAD file]
Add modified source code MobBob2_Remix_Contol_Bluetooth.ino to .zip

[Upgrade 20160104]
Redesign Foot
MobBob2_Remix_Foot_L_Top.stl
MobBob2_Remix_Foot_L_Floor.stl
MobBob2_Remix_Foot_R_Top.stl
MobBob2_Remix_Foot_R_Floor.stl

[Update 20160102]
Add MobBob2_Remix_Cap.stl
Add MobBob2_Remix_Battery_Mount_Cover.stl
Add MobBob2_Remix_Jacket_L.stl
Add MobBob2_Remix_Jacket_R.stl

[Update 20151231]
Add Photos
Add 18650_Battery_Bank_2x_r01.stl
Add 18650_Battery_Bank_2x_Cover_swC_r01.stl


Smart Phone Controlled Robot – MobBob V2 Remix


3D Design Tool: SketchUp Pro
Design concept: RAPIRO – The Humanoid Robot and Gundam

This is an remix version of my MobBob robot.

MobBob is a smart phone controlled robot. By harnessing the power of your smart phone, MobBob is a walking, talking robot with voice recognition and computer vision that you can build for around $20. I will be continuing to extend his features over time. I want MobBob to be a companion robot that everyone can afford and have fun with.

You can see videos of MobBob V2 Remix in action here:
https://youtu.be/fE7024whSF8
https://youtu.be/aZaUMOi9q0k
https://youtu.be/LGFUjzvBPuI
…..
Coming soon!!

The main aims of the V2 remix were to:

Support standard 9g servos [previously I was using Tower Pro SG90 servos]
Make everything easier to assemble [no more need for glue]
Make it easier to adapt/modify for other phones. The new bracket system made it easier to exchange a new phone / the battery holder.

Also, in my V2 Remix build, I’m also using the Arduino Nano instead of the DIY Nano shield, so the entire build is smaller and tidier. 🙂

MobBob V2 Remix uses the same software as the original MobBob V2.

You can find the latest Arduino code here: https://github.com/cevinius/MobBob
The modified code is included: MobBob2_Remix_Control_Bluetooth.ino

You can download the latest version of the Android app from Google Play – it is free, ad-free, and without IAP:
https://play.google.com/store/apps/details?id=com.cevinius.MobBob

You can find more detailed build and wiring instructions here:
…coming soon…

The parts that you need to print:

1 x Leg Left
1 x Leg Right
1 x Foot Left………………………………Delete
1 x Foot Right…………………………….Delete
1 x Foot Cover Left……………………..Delete
1 x Foot Cover Right……………………Delete
1 x Foot Left Top
1 x Foot Right Top
1 x Foot Left Floor
1 x Foot Right Floor
1 x Waist
1 x Arduino Nano Holder
1 x Phone Mount Base
2 x Phone Mount Side
1 x Phone Mount Gear
1 x Phone Mount Back Plate
1 x Phone Mount Conn
2 x Phone Mount Bolt
2 x Phone Mount Nut
1 x Battery Bank Rack [18650 x 2]
1 x Battery Mount Cover
1 x Jacket Left
1 x Jacket Right
1 x Cap

The non-3D printed parts you need are:

4 x Tower Pro SG90 servos
1 x Arduino Nano ATmega328 [see note below]
1 x HM-10 BLE Bluetooth 4.0 CC2540 CC2541 Serial Wireless Module
1 x 5V Micro USB 1A Lithium Battery Charging Board [see note below]
1 x DC-DC Converter Step Up Boost Module 2-5V to 5V 1.2A
1 x Rectangle On/Off Long Rocker Switch SPST
2 x Snap-In Single ‘A’-‘AA’ Battery Contacts 209 [KEYSTONE ELECTRONICS CORP.]
2 x Snap-In Single ‘A’-‘AA’ Battery Contacts 228 [KEYSTONE ELECTRONICS CORP.]
2 x 18650 Lithium ion Batteries
1 x 300mm USB 2.0 A Male to Micro USB B 5pin + Mini B Male Y Splitter Cable
1 x Smart Phone [see note below]
4 x M3 5mm [for Foot Cover]
2 x M2 10mm [for Phone Connect]
4 x M2 5mm [for Phone Mount Back Plate]
2 x 2mm 5mm Tapping screw [for Foot servos]
2 x 2mm 8mm Tapping screw [for Hip servos]
2 x 1mm 5mm Tapping screw [for Foot servos hone]
2 x 1mm 8mm Tapping screw [for Hip servos hone]
2 x M3 15mm [for Jacket]
2 x M3 Nut [for Jacket]
4 x 2mm 15mm Tapping screw [for Jacket]
[Note: I got the servos, Arduino Nano, Bluetooth Module and Battery for under $30.]

Arduino Nano:

This is a small, Arduino compatible ATmega328 board with DIY extension board. MobBob V2 app connects to the Bluetooth module using its Bluetooth LE service. The app to support other Bluetooth cards.

Battery Extender:

You can use other batteries that provide 5V with a steady current. If you use other batteries, you may need to adapt the battery rack for your battery’s size.
Use 18650 Lithium Battery Charging Board With Protection Charger Module and Step Up Boost Module 3.7V to 5V for Smart Phone
http://www.thingiverse.com/thing:1235749

Smart Phone:

You can use other Android Smart Phones with This app.
You do not need to adapt the size of the phone holder for your phone. The app has been successfully tested with Nexus and Samsung, LG phones, but should work on other Android phones.

Instructions:

Print all the required parts
Get all the non-3D printed parts
Assemble as per the photos – I’ll be writing some more detailed instructions on my website soon!
Install the Arduino code from the GitHub link in the description – You will need to update the Arduino pins in the code to match yours, and probably update the centering values for the servos.
Install the Android app from the link in the description.

Have fun!

If you hit any problems, please post a question on this website: [http://www.cevinius.com], here, or on YouTube channel. A few people have built MobBobs now, so there are people around who can help.

Coming soon update!!


Print Settings


Printer: PANDORA DXs – DIY 3D Printer
Slicer: Cura 15.04.2

Layer height (mm): 0.1
Shell thickness (mm): 0.8

Bottom/Top thickness (mm): 1.2
Fill Density (%): 00

Print speed (mm/s): 50
Print temperature: 200
Bed temperature: 70

Support type:

  • Touching buildplate:
    MobBob2_Remix_Phone_Mount_Side.stl,
    MobBob2_Remix_Phone_Mount_Nut_L.stl,
    MobBob2_Remix_Phone_Mount_Nut_R.stl,
    MobBob2_Remix_Phone_Mount_Conn.stl,
    18650_Battery_Bank_2x_Cover_swC_r01.stl
  • Everywhere:
    MobBob2_Remix_Nano_Shield_Holder.stl
    MobBob2_Remix_Battery_Mount_Cover.stl
    MobBob2_Remix_Jacket_L.stl
    MobBob2_Remix_Jacket_R.stl

Platform adhesion type: Brim

Filament: PLA
Filament Diameter (mm): 1.75


3D Files:

https://www.thingiverse.com/thing:1232619

Polargraph Drawing Machine

This machine, a variation on the hanging-pen plotter is a conspicuous and wilfully naive attempt to break out of the pristine, pixel perfect, colour-corrected space that exists inside our computers. It’s a drawing machine, that takes a pen (a human tool) and uses it to draw in a singularly robotic way, with some grand results.

It doesn’t draw at all like we would (though it could), and we would struggle to draw exactly as it does (though we could).

It can draw on things bigger than itself – the question is really “how long is a piece of string?” when it comes to working out it’s maximum area.

It’s easier to look at what it does, than to explain it, so just have a look.

Step 1: History

Well there have been lots of new drawing machines doing the rounds lately, there’s a real thirst to see devices that leap out of the virtual into the
physical. For me, it’s all too easy to produce digital things which are interesting – programming or mash-ups or virtual experiments are devalued because they are intangible, you can run a hundred, a thousand, a million variations in a day – it’s the proverbial roomful of monkeys with typewriters. The output becomes disposable, it get’s hard to see the value, the craft.

So 3D printers and other desktop manufacturing tools and technologies (laser cutters etc) have got more and more popular, it’s hard to overestimate how much hunger there is for a tangible, physical, touchable, smellable product of all this clever-clever digital work.

So this isn’t wholly original, check out this prior art for more inspiration:

Hektor – the daddy of all hanging drawing machines
Der Kritzler – the smartest one yet
AS220 Drawbot – the basis for mine
SADBot – Instructable for an automatic drawing machine on the same pattern by Dustyn Roberts

But this is the original Polargraph! The term is a portmanteau word invented for this instructable, and it has caught on. People who don’t know their drawbot history often use the word to describe any hanging-v plotter, but it is actually means something very specific: A machine that runs the Polargraph software.

Mostly based on the success of this instructable, I started a little workshop making Polargraph parts, and the next-generation Polargraph gear (PolargraphSD). Couple of links below:

Polargraph website
Polargraph wiki and code
Flickr stuff

Step 2: Parts

There’s a hundred different ways of making a machine like this, but I’m going to show you how I make mine, as a jumping off point. I hope you’ll see some places it can be improved.

Electronics.

  • Microcontroller – Arduino Uno or compatible. I’ve used a Seeeduino here. (from coolcomponents). Be aware that some “arduino compatible” boards that use FTDI chips are only really Arduino Duemilanove compatible – they have very slightly less memory, so the Polargraph code no longer fits on it.
  • Motor drivers – Adafruit’s Motoshield v1. A modern classic. It can drive two stepper motors each drawing up to 600mA and has pinouts for a servo too, so is perfect for this project. This is now discontinued by Adafruit, but boards like them are widely available on ebay (search for “L293D motor shield arduino”). Adafruit _do_ make a new motorshield that is even better, but I haven’t got one to test one.
  • Motors – Look for motors with a current rating of around 600mA (0.6A).  Mine were 400 steps per revolution (0.9 degree per step), NEMA 16 stepper motors, with a 5mm diameter shaft off ebay, but something like this NEMA-17 with a 0.4A current rating would do nicely, as would this one from Adafruit.Power supply. 1 amp (1000mA) Variable voltage AC/DC power supply. Set the voltage as high as you dare. If things start getting hot, just turn it down a bit. 9v will be fine, 12 may be pushing it, but it depends on your motors really. At peak, the machine might be drawing 1.2 amps (2x 600mA), so you might benefit from a beefier-than-average power supply. That said, it ran for months on a 600mA supply before I did something silly and it stopped. (expro.)

Gondola.

  • This is the pen holder. I am from the “heavy and stable” school of thought. I think it makes for a more definitive impression, and a cleaner line.
  • 3x 6003Z deep groove bearings. (simplybearings.co.uk)
  • 50mm length of K&S stock #144 brass tubing (21/32″, 16.66mm dia). (hobbies)
  • Laser cut acrylic parts.  The original is made of corrugated cardboard and a blank CD, just glued on, so this is by no means necessary. (Ponoko)

Running gear.

  • Beaded cord.  This is used in roller blinds.  (ebay – a shade better).  You could use metal ball chain if it matches the pitch.
  • Sprockets. Don’t seem to exist off-the-shelf, so I made these 3D printed ones (shapeways).
  • Counterweights.  I used a bolt with a stack of washers hung on it.

Hardware.

  • Surface – big flat surface to base your machine on.  Discussed in the next step.
  • Brackets – laser cut plywood to allow the motors to be fastened to a flat wall.  If you are mounting on a board, you might be able to just simply stick the motors directly on the top edge of the board. (Ponoko)

Step 3: Sprocket up!

I couldn’t find a source for these beaded cord sprockets.  Roller blind mechanisms have them in, but not in an easily usable form.  I made my own and had them printed through Shapeways.  John Abella has made a parametric sprocket suitable for other bead spacings that can be 3d printed at home if you have access to something like a makerbot or a reprap.

Push-fit a sprocket onto the 5mm shaft of the motor.

Step 4: Prepare your motors

Strip the ends of the motor wires and tin them. Unless you have very long wires already on them, you’ll be extending them, and use whatever is to hand to do it – in my case, I used plain screw terminals.  Make sure you label your extension cable too.

Step 5: The drawing surface

Find a big board or something to use as your surface.  Your board should be at least 150mm bigger on each side than the largest sheet of paper you want to draw on.

You can use a wall if you have some motor mounting brackets, but I was always terrified about it going wrong and scrawling marker pen over my wall.  My landlady would be unimpressed, I feel.

Using a board means you can tilt it slightly too just by leaning it against the wall, and that’s a good thing because the weight of the gondola presses the pen to the page.  When the surface is perfectly vertical, it’s hard to get any pressure against the page – the lines tend to come out a pretty woolly.

I went down the local DIY shed and scavenged in the offcuts bin for the biggest bit of chipboard I could fit in my little car, but I’ve also had good success with building a machine based on the biggest IKEA Ribba picture frame.  This has the added feature that you can use it as a picture frame afterwards, amazingly.  A whiteboard is a good alternative too, because you can test quickly, but any kind of flat surface will do.  My first one was only big enough for A3, and worked fine, so don’t feel it has to be massive.

Step 6: Mount your motors – edge style

Your motors should be mounted so that the sprockets are as close as possible to the drawing surface.  If you have a thick surface, you can get away with just sticking your motors to the top edge of the board with double-sided foam tape.  This is actually a nice way of doing it because it cushions the vibration too.  The motors do tend to twist a bit, because their little foam rafts have some stretch in them, but on mine it wasn’t really a problem unless I left the gondola hanging for days.

This arrangement is much neater when it comes to cabling and things too.  It all hangs down the back.

If you have access to a 3d printer, there is a neat stepper motor mount available at http://softsolder.com/2011/08/23/nema-17-stepper-motor-mount/.

Step 7: Mount your motors – front style

This is way I’ve come to mount the motors, and it looks a bit untidy, but it is less dependant on the type of your drawing surface – it can be stuck onto anything basically, including walls and other enormous surfaces.

I have attached plans for a motor mount to be lasercut from 3mm thick plywood, but there’s nothing clever about it except that it only slots together, so the motory bits can be removed easily, leaving the main mount plates in place.  I have got it on a Ponoko P1 sized piece of board, and you will need two of these cut.The plans for Der Kritzler include window-mountable servo holders that use suction cups.  That bracket is probably stronger than mine too, but it needs more parts to build it.

Fasten the big plates onto your surface in the top corners.  They should be exactly level.  I use double sided sticky foam tape for more or less everything, but make sure you use plenty because they are fairly heavy, and there is some vibration.

Step 8: Electronics – Arduino

You need an Arduino UNO board, I used a Seeeduino v2.21 here – it did the job very nicely back in the day, but a couple of new features have been added to the code and so it doesn’t fit on anymore. Genuine UNOs have very slightly more space for programs.

Upload the source code to the arduino. Seriously. Actually do this. Nothing will work until you do this. Do it.

Look at this fine guide courtesy of Adafruit for help. Or anywhere on Instructables, or one of the hundreds of Arduino tutorials on the web.

Because it changes regularly, I have not attached a copy of the code itself to this step, but the very most recent version can be downloaded in a bundle from the polargraph code repository. Download the file called Polargraph.___.zip.

Unzip the bundle. Inside it is a folder called arduino-source which contains (you guessed it), the source code for the arduino part of the project.

Inside arduino-source there is a folder called libraries. It contains the libraries you need (

Adafruit’s AFMotor and Mike McCauley’s Accelstepper)

It also contains a folder called polargraph_server_a1. This is the polargraph firmware source code.

Copy the contents of arduino-source/libraries into your Arduino/libraries/folder.

Copy arduino-source/polargraph_server_a1 into your Arduino/ folder.

You should have created three new folders on your disk:

  • Arduino/polargraph_server_a1/
  • Arduino/libraries/Accelstepper/
  • Arduino/libraries/AFMotor/

Start Arduino IDE.

Go to File->Sketchbook->polargraph_server_a1

Fourteen files will open up and be displayed as tabs in the IDE. This is the source code of the firmware.

Press the “verify” button in the toolbar to try and compile it.

If it compiles, press the “upload” button in the toolbar to upload it.

Of course the source code is also available in the code repository – https://github.com/euphy/polargraph_server_a1 – should you want the very most recent version, but you’ll have to figure that one out yourself.

Once you do that, you should confirm that it is working properly – use the serial monitor on the board, set to 57600 baud to make sure that it is issuing “READY” every couple of seconds (see the last image).

Step 9: Electronics – Motorshield

The motorshield is usually supplied as a kit, it’s easy to solder up, follow the instructions on the Adafruit site. It’s brilliant. I am an Adafruit fanboy, so sue me. Not much more to say about it. Adafruit discontinued the v1 motorshield in 2013. Lots of people are still selling clones of the v1 design on ebay, just search for “L293D arduino motor shield”.

(The firmware can be compiled to use the Adafruit Motorshield v2, but it’s not as good. There are instructions in the source code that show you what you need to change.)

The motorshield has two stepper motor ports, one on either side. It takes it’s power from the host arduino, but has a separate connector that you can use to connect an external power supply. If you have a power supply that has bare leads, you can screw them in here (make sure you get the polarity right) use this and remove the power jumper from beside it. I’m going to stress that the power connector is wires up properly – +V on the left hand wire, GND on the right. There is no reverse polarity protection on this board, so if you do it wrong it’s likely you’ll damage the board, and maybe your arduino too.

If you don’t use it, you should plug your external power supply directly into your arduino, and leave the power jumper ON. I am wiring directly, because it’s better practice to have entirely separate supplies for motor and logic.

I also added little heat sinks to the driver chips (L293Ds) on the motorshield. They get hot, and you can use a fan to cool them if you have one spare, and really, I don’t know if they every really get dangerous, but with heatsinks on I feel a more comfortable letting them run for hours and hours.

Step 10: Electronics – Wiring

Each motor has two circuits, or coils in it, and a bipolar stepper has four wires coming out of it, two for each circuit. Most steppers will have a datasheet that will let you know which colour wires lead to which coil. Find out, either using your datasheet, or a multimeter (a bit more about steppers, and how to figure them out on adafruit and this article helped me figure it all out.).

Mine have the red and the blue wire attached to one coil, and the white and the yellow wire on the other coil.

The two motors should be wired up with their coloured wires matching left and right. So on the left hand side, you should have wire pair 1 (red/blue) in the top two terminals, and wire pair 2 (yellow/white) in the bottom two terminals. And on the right, it’ll be exactly the same: pair 1 in the top, pair 2 in the bottom.

I stuck my arduino to a bit of foamcore board stuck on the back of my drawing surface. Just makes it a bit easier to deal with.

Push the motorshield into the arduino, and fire it up!

Step 11: Controller software – install

The setup is ready to test! The software you use to control it is a little application written in Processing. You can run this from the source code, but it’s probably easier to use one of the pre-compiled binaries that I’ve made. The most recent code bundle has the latest versions for Mac, Windows or linux. Download the file called Polargraph.*.zip (rather than the “source code” files).

(That bundle also includes all the source for the controller, and the firmware, and all the Processing and Arduino libraries you need to run from source.)

Download it, unzip it, and run the executable in the controller folder. It’ll open up very small, but maximise the window to see more. It will automatically create a default configuration file in the same folder as it runs in, and you should then click “save properties” in the top-left corner to save the new window size as the default.

Compile from source

If you’re curious about Processing, you’re right to be: It’s ace. There are useful tutorials on processing.org, and of course here on Instructables too. It’s basically java, but optimised to run little stand alone programs with graphics. If you’re interested in keeping on the leading edge of the controller development, you might like to check out the code directly from the repository and compile it yourself. Another reason: The precompiled binaries that I distribute are a little idiosyncratic, and sometimes refuse to work on some people’s machines. If you compile from source, then it’ll work at least.

Couple of notes – The controller is getting a bit long-in-the-tooth now, and I haven’t updated it to use Processing 3 yet. So in the meantime, it will only compile in Processing 2.x. Additionally, the libraries have also since moved on since it was written, and it’ll only work with the versions in the zip file (referred to above). I’m working on an update, but it’s not ready yet.

  1. Install Processing 2.2.1 (From https://processing.org/download/?processing)
  2. Run Processing, find where your sketchbook folder is: (File->Preferences, sketchbook location).
  3. Install libaries: Unzip the code bundle, and copy the contents of the processing-source/Processing libraries into sketchbook/libraries.
  4. Install project: In the code bundle, copy the whole processing-source/polargraphcontroller folder into your sketchbook folder.
  5. Restart Processing, and open the controller with File->Sketchbook->polargraphcontroller.
  6. Run: When some files have opened up and you can see some code, hit the play button in the toolbar (or use Ctrl-R) and you should see the controller spring into live.

It’ll only be a small window, so go ahead and stretch it so you can see everything. If it worked, then well done. NEXT!

Step 12: Controller software – Primer

Ok, in the controller window there are three main elements.

  1. The control panel with all the buttons down the far-left,
  2. The grey rectangle in the middle that represents the machine itself,
  3. The command queue down the right-hand side of the machine.

Some of the controls are just to do with the controller (like load image), but some (like set home or render pixel) send commands to the machine itself. Some of the controls are number spinners, click and drag up and down on them to change their value.

Move the mouse over the machine and you’ll see some lines overlaid that represent the hanging cords. You can zoom in and out from the machine using the mouse scroll wheel, and “grab” it and move it around using the middle mouse button drag.

If a command is issued to the machine, it’s held in a queue until the machine signals to say it’s ready to do something. The command queue is shown on the far right of the app window. When you first start it up, it’s in paused mode, and is pre-loaded with a couple of default settings. You can start it and stop it by clicking on the queue header (where it says COMMAND QUEUE: Paused – click to start). The queue can be emptied with the reset queue button. While the queue is paused, individual commands can be removed from it by clicking on them.

The interface is separated into three tabs, switch between them using the labels at the very top. Each tab has a different set of buttons in it’s panel.

  1. Input. Used for loading images, moving, resizing, selecting an area to draw, as well as issuing the drawing commands. Click on load image and browse to an image, (png or jpg), then move image and resize image to place it on the page.
  2. Setup. Used for defining the machine hardware. Change the machine size, the page size and position and the home point position. Also change the motor speeds and pen size. Once you’ve changed the machine on-screen to reflect the real size of your own machine, press upload machine spec to send it to the machine.
  3. Queue. Used for exporting and importing the queue to and from a text file. They are in plain text, so it’s easy enough to hack them.

Next let’s connect it up.

Step 13: Controller software – introduce it to your hardware

To get the controller to talk to the machine, change to the setup tab and then click on the serial button. This will pop up a little window with a list of the available serial ports in it. If you know which one to try, click it. If not, just go through them, waiting for a couple of seconds between each one until you see the top line of the main window turn green and show Polargraph READY!

The hardware broadcasts that it’s ready every couple of seconds, which is why you might need to wait. If you don’t want to connect it (because you haven’t got a machine yet) just choose no serial connection.

Job done! Close the serial port window and then click save properties in the control panel, so the controller remembers it for next time.

Step 14: Controller software – make it move!

Confirm you have set the right serial port, and that it’s communicating with the arduino by looking for a Polargraph READY! at the top of the window. This line will be red if it’s not connected. If you connect the machine after starting the controller, then you’ll probably need to close and restart the controller too.

If you’re running from Processing, then you should also be seeing incoming: READY in the Processing console every couple of seconds, in the background.

That’s great! Unpause the command queue, and you’ll see the first couple of commands get gobbled up by the machine, one after another. Click Set home.You’ll see a command appear in the the command queue, and then it’ll get sent to the machine right away. You will see the big purple dot that signals the location of the pen will move to the be in the middle of the top edge of the machine on-screen. The motors themselves will also give a little wriggle, and you’ll find they’re locked – they’re now under power!

Ok, now click the Move pen to point button, which is as close to a manual move command as you have, and click somewhere right down at the bottom of the machine. With luck, you will hear and see the motors whirr into life, accelerate and then decelerate back down again.

The purple spot will move too. This is where the machine thinks the pen is.

Try this again, and make sure the sprockets are moving in the right direction. When the machine is moving the pen down the page, the left-hand motor will be spinning clockwise, and the right-hand motor will be spinning anti-clockwise. When the machine is moving up the page, it’ll be the other way around.

If one, or both of your motors are going in the wrong direction, you might have got your datasheet wrong, or made an error when labelling them up or something. You just need to swap your two pairs of wires around. To be honest, trial and error is as good a way of working out the correct circuits as anything else, but it’s hard to do until you’re absolutely sure all the rest of it is working right.

Good work! I recommend a cup of tea! There’s no part of a project quite so rewarding as that first moment when it moves, or makes a noise, or electrocutes you, I think you’ll agree.

Step 15: Assemble the gondola

The gondola is the pen holder. There’s a few alternative designs out there for them, including this 3D printable one that seems to do the business nicely. My design is much heavier, and has a hollow centre so that the pen can always be in the exact point where the cords converge. In practice, I’m unclear about how much difference this makes, but it makes me feel good.

I made the first one from corrugated cardboard, and a blank CD, stuck to some ball bearings (see the last picture on this step). Later I graduated onto some fancy-dan laser cut parts (available through ponoko, or you can grab the source from the github repo), but the principle is the same. I’ve attached the design in an EPS on a ponoko P1 sized board.

The parts just slide together, and then onto a length of brass tube (see parts list). The laser cut parts have nodes in them that will need a little filing to get them on. Just be careful because the acrylic is pretty brittle. It should all push-fit together, but if it gets too loose, a few dabs of glue will keep it together. I usually put a bead of glue around the hole in the stabiliser, and then another couple of dots around the hole in the final spacer ring.

The sequence is, from bottom to top:

  1. Big stabiliser
  2. Empty bearing
  3. Spacer ring
  4. Bearing with straight cord hanger arm
  5. Spacer ring
  6. Bearing with offset cord hanger arm
  7. Spacer ring (this is the one I glue)
  8. And a plywood ring as a decorative touch

Step 16: Add cord and counterweights

The length of the cord will obviously dictate the size of your drawing. Make your cords long enough to stretch at least from your sprocket to the opposite corner of your biggest drawing paper sheet, when it’s mounted. Don’t forget to leave a couple of inches to tie/clip your counterweights on with. Just push one end into the clips on the gondola.

I use some bolts with washers on them as counterweights, but you can use anything – bags of change are a good alternative. The exact weight isn’t critical at all – this is not a finely balanced machine. The object is to have the gondola hang naturally in the upper-middle of the machine’s drawing area. My weights are around 150 grams each.

After this, you may even wear your gondola with beaded cord as if it is a steampunk arc reactor medallion. I often do, and feel very powerful at it. POW! TAKE THAT, BAD GUYS!

Ahem… Or you can just put it on the machine, draping the cords over the sprockets. You’ll need to figure out a neat way of avoiding the cables if you have front-mounted motors like me.

Step 17: Back to the drawing board

Ok, the last bits of configuration then:

  1. Measure your machine size
  2. Find your home point

Use the diagram attached to this step, and draw lines on your drawing surface in the places marked.

It’s important that the lines are all square and parallel, and your measurements are accurate. You can’t hope to get good results if you don’t have it marked out properly. As they say: Proper Preparation Prevents Poor Polargraphs. Don’t they?

Ok, so measure your machine width, in mm. This is the distance between the closest points of your sprockets. Measure from the teeth rather than from the rim. It should really be from the point where the cord hangs, but that changes all the time, so this’ll do.

Now draw a line for the top edge of your machine. It should run exactly in between your sprockets, between the two motor shafts.

Draw another horizontal line, exactly 120mm lower than your top edge you just drew. This is where you’ll put the top edge of your page. You can’t expect to draw much higher than this.

Draw a vertical line down the exact centre of your machine. Where this vertical line crosses your top edge of page line is your home point. The machine knows where it is, you know where it is. You both agree, and it’s where everything starts from.

Step 18: Finish configuring your controller

Start the controller again, and change to the setup tab.

Set:
machine width
machine height

entering the values you just measured, in millimetres. Height isn’t actually that important since it doesn’t affect the geometry, but it does affect how big it appears on your screen, so make it accurate if you can. You will be able to see the machine changing size on screen as you adjust these values.

You can also change the page width here, and the page position. Unless you have a much wider machine than this, leave page pos y as 120 though.

Other than that, page size and position is a purely visual aid to let you size your drawing properly. You can centre the page horizontally with the centre pagebutton.

The home point has a default position that is where you marked it on your board in the last step, that is, halfway across the top edge of your machine. Click centre homepoint to reset if it goes astray, and you can set it to anywhere you like if you don’t want it there (for whatever reason).

Now save properties again so you don’t have to enter this again!

Advanced editing
If you are using different motors, or different sprockets, change:

  • stepsPerRev: This is how many steps your motors have per revolution. Well, it’s actually _double_ that, because I’m using an interleaved step style in the software – it creates kind of intermediate steps. My stepper motors have 400 steps per rev, so I enter 800. Yours are probably 200, so you should enter 400.
  • mmPerRev: This is how much cord is extended per revolution. It is essentially the circumference of the sprockets, though with these beaded cords, it’s actually the length of 8 bead sections.
  • step multiplier: (not shown on the pic…) This is how many microsteps the machine can make between your big steps. For this machine, set to 1.

If you are changing these settings, you are best off restarting the app afterwards. There’s a lot of other calculations based on these figures, so a fresh start is safer.

Step 19: Upload your measurements to the machine

So now you should see the size has changed on-screen so the controller knows what the real size of your machine is. But the machine itself doesn’t!

You need to upload it by going on the setup tab, you might already be there, and clickking Upload machine spec. This saves the new size into EEPROM on the arduino, so it’ll stay there even when the power is lost. Unless you change the sizes, this is the only time you have to do that. Page size isn’t relevant here, only machine size.

If you’re curious (and why wouldn’t you be?) Download machine spec does the opposite – it set’s the machine size in the controller to be whatever the hardware has saved. This might be useful if you delete your configuration file sizes and don’t want to measure it all again.

But remember that the configuration file doesn’t ever get updated until you click save properties. So remember that if you make changes you want to keep.

Step 20: Now really make it move!

You need to calibrate the machine before each drawing session. This involves telling it where the pen is. You do this by clicking Set home on the Input tab and then physically moving the gondola so that it directly over the home point that you worked out earlier.

Clicking Set home locks the motors, it applies power, so they will hold the gondola there for as long as you want.

AND THAT’S IT!

Use Move pen to point to move the gondola around the drawing surface. The noise should be smooth, and the motion also. If you find your motors slip – most likely near the extremes of the the surface, or when you’re moving fast – you’ll need to recalibrate. As soon as the actual position of the gondola gets out of sync with where the machine thinks it is, then your geometry is all off and your drawings will be distorted.

The standard maximum speed is 600 steps per second, and the acceleration is 700 steps per second (per second). Change these values by using the number spinners on the setup tab, and then clicking send speed. These speed change commands also skip right to the front of the queue too – they’re priority, you can see them in cyan in the queue.

Step 21: Work with images

So that’s the hard bit done – now load a drawing, select an area to draw, and choose a drawing style.

  • On Input tab, click load image and browse to an image to try. Some work better than others, but it’s all to taste, so just experiment.
  • If your image doesn’t show up right away, it might be off the screen somewhere, or too small. Click move image and you should see a ghost version of your image hovering under your mouse. Click in the centre of your machine to place it there, and click move image again to move out of that mode.
  • Drag resize image to control how big the image is.
  • Click Select Area and drag a box around the area you want to draw.
  • Once you’ve selected an area, the view will automatically switch to hiding the image, and showing the density preview. Use the smaller view buttons in the bottom of the control panel to show the image or hide the density preview.
  • The density preview is designed to show what detail is being captured. The circles are not representative of the shapes that will be drawn, but are representative of their intended position, size and brightness.
  • Drag the number spinner for grid size to change the size of the “pixels”, bearing in mind that smaller ones take longer to draw (actually they are faster individually, but there are more of them).
  • Drag the number spinner for sample area to change the contrast of your image. This is the size of the area that is sampled when choosing the density (pixel sample area). I find I get the best results with a sample area just bigger than my grid size.

Remember, that once you’ve found a setting you like, you can save it to the properties configuration file by clicking save properties. If you don’t, it’ll all disappear when you restart and you will burst into tears.

Step 22: Choose a pixel style

Currently there are four pixel styles.

  • Shade Square wave – the standard. Pixel density is translated into a square wave pattern. Darker pixel = more waves = more ink.
  • Shade Scaled square wave – the half-tone effect. Instead of changing the number of waves, this one changes the size of the square that gets drawn. Darker pixel = big pixel = more ink.
  • Shade Solid – used for multi-layer chroma keying effects. This shades every pixel at maximum density, no variation.
  • Shade scribble – noisy effect. This is like a randomised pixel – a number of lines are drawn, but their direction and length are random (within the boundary of the pixel). Darker pixel = more lines = more ink.

Step 23: Load it up and get scribbling!

Load a pen in the gondola just by sticking it in with a bit of blu-tack, so the tip peeps out just a bit.

Stick a piece of paper onto the surface.

Home your gondola.

Click the “render” button for the kind of pixel you want.  Watch in amazement!

I’ve had best success with non-bleeding pens and paper.  I like using a very smooth paper like bristol board, along with hard-tipped fineliner pens.  Here in the UK I can buy these ZIG Millennium pens quite easily, and they’re really good. Pigma MICRON seems to be a popular US pen in the same kind of vein.

For coarser drawings, a thicker tip is good, I’ve used regular sharpies regularly, and though they bleed badly, they are vibrant and solid.

Step 24: Pen lift servo

If you fasten a little servo motor to the gondola, you can use it to lift the pen off the page.  There are two servo connectors on the motorshield, if you connect up SER1, then this will respond to commands sent to the machine.  I just use the control horn to poke through the gondola and lever against the surface.

The commands can be issued manually by using # or ~ to raise or lower the pen.  This is not very subtle, but it works well enough to prevent the pen from leaving a big bleedy mark at the end of the drawing. These commands are automatically added to the beginning and the end of the queue when you do a drawings.

Step 25: Pen thickness

The size of the pen tip controls how many waves the machine can fit into one pixel.  If you have a pixel that is 20mm square, and you have a 1mm pen tip, then you can only fit a maximum of 20 lines in before it’s at it’s maximum density.  Adding more ink then won’t make it any darker.

If you then swap out the pen and put in one with a 0.5mm tip, 20 lines will no longer completely fill in the pixel, now it will require 40 lines to fill it.  The machine works out the maximum possible density based on what sized pen you tell it you’ve installed.

You can change the pen width on the setup tab, by changing the value of pen tip size and clicking send pen tip size.  The tip size is not saved in the machine, it needs to be resent every time the machine is restarted, which is why the value is pre-loaded in the queue when you restart the controller.

Test pen widths
Rather than rely on manufacturers descriptions of pen tip width, there is a kind of calibration function to test pen widths too, this draws a sequence of pixels at maximum density, but it increments the pen width setting between each one, so you can try to narrow down what pen tip thickness gives you the deepest density you want.

There are three settings on that setup tab that control the size of the test swatch:

Pen test start tip – this is the tip size for the very first square and should be low.
Pen test end tip – this is the biggest tip size the machine will try.
Pen test inc size – this is the size of the increments that the machine will make to get from the start tip size to the end tip size.

If it was set to start:0.6, end: 2.0 and increment: 0.1, the machine will draw the first pixel as if it has a 0.6mm sized pen, then draw more, each time incrementing by 0.1mm, until it is 2mm.

Once you’ve decided which square you want to be your darkest, set the pen tip width to the setting required and save properties.

Step 26: Vector graphics drawing

With the new software (controller v1+ and server_a1), came vector drawing capabilities that make this machine even more useful.

Using Inkscape
All the paths need to be separate in the SVG file.  Text needs to be converted into paths.  You can do this by selecting everything and going to Path->Object To Path (this will convert any shapes like letters into outlines), and then select them all again and do Path->Break Apart (this breaks up any letters that have more than one outline in them).  You might find it useful after that to change the fill colour to empty (click on the empty swatch at the bottom), and set the outline to be black (shift-click on the black swatch at the bottom).  Save it.

Click load vector from the input control panel, and choose your SVG file.  If you can’t see your vector, click “move vector” and you should see it floating under your mouse as you move it.  Click again to place the SVG.  You can resize by dragging the “resize vector” number spinner.  Here 100 represents full size, that is 1px in inkscape equals 1mm on the machine.

Only lines that are entirely within the page area will be processed by the controller.

Now click render vector to convert the line art into polargraph commands and load them all into the command queue.  For vector work, the move direct command is used to tell the machine where to move, and it will always draw in a straight line on the board. The down side is that it’s a lot slower because it basically chops the line into dozens of smaller lines, and has to do a lot more calculations continuously.

If you hide the vector lines (show vector) you can see the actual lines that are stored up in the command queue previewed (show queue preview).

Low-Cost, Arduino-Compatible Drawing Robot

I designed this project for a 10-hour workshop for ChickTech.org whose goal is to introduce teenage women to STEM topics. The goals for this project were:

  • Easy to build.
  • Easy to program.
  • Did something interesting.
  • Low-cost so participants could take it home and continue to learn.

With those goals in mind, here were a couple of the design choices:

  • Arduino compatible for ease of programming.
  • 4xAA battery power for cost and availability.
  • Stepper motors for accurate motion.
  • 3D Printed for ease of customization.
  • Pen plotting with Turtle graphics for interesting output.
  • Open Source so you could make one of your own!

Here is the robot that came closest to what I wanted to do: http://mirobot.io. I don’t have a laser cutter and shipping from England was prohibitive. I do have a 3D printer, so I guess you can see where this is going . . .

Don’t let the lack of a 3D printer deter you. You can locate local hobbyists willing to help you out at https://www.3dhubs.com/.

It took a lot of work, but I’m please with how it turned out. And, I learned quite a bit in the process. Let me know what you think!

Step 1: Parts

There are a number of ways to power, drive, and control robots. You may have different parts on hand that will work, but these are the ones I’ve tried and found to work well:

Electronics:

*Note: See the last step for a discussion on using regular Arduino or Raspberry Pi boards.

Hardware:

3D-Printed Parts (check out www.3dhubs.com if you don’t have access to a printer):

Tools and Supplies:

  • Phillips screw driver
  • Hot glue gun
  • Digital multi-meter
  • Sharp knife

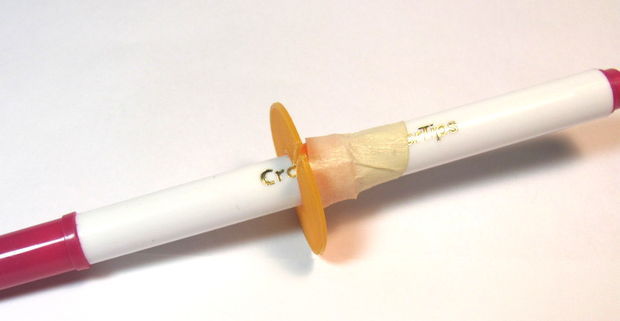

  • Crayola colored markers

Step 2: Flash the Firmware

Before we get too far into construction, lets load the test firmware on to the microcontroller. The test program just draws for boxes so we can check for proper direction and dimension.

To talk to the Trinket Pro, you are going to need:

  1. Driver from https://learn.adafruit.com/introducing-pro-trinket…
  2. Arduino software from https://learn.adafruit.com/introducing-pro-trinket…

Lady Ada and the Adafruit team have created a far better set of instructions in the links above than I can provide. Please use them if you are stuck.

Note: The one trick that makes the Trinket different from regular Arduino is that you have to reset the board before uploading the sketch.

Step 3: Pen Holder and Battery Holders

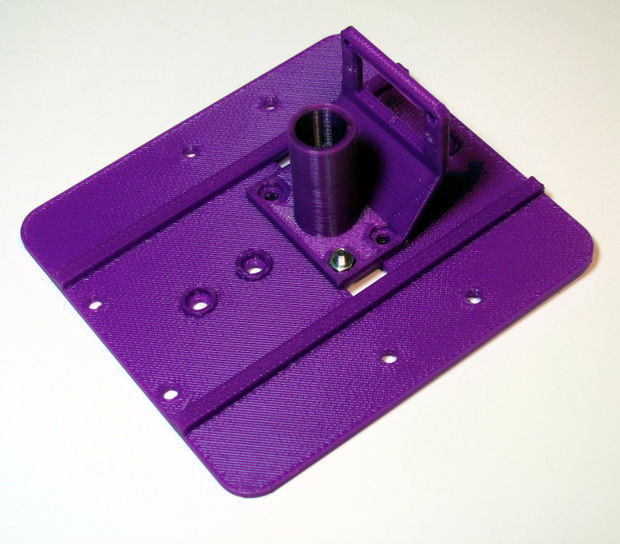

  1. Install the Pen Holder with the Servo Bracket on the shorter side of the chassis (Image 1).
  2. Insert the nuts on the top side of the chassis (Image 2)
  3. Attach the battery holders on the bottom of the chassis using 3Mx6mm flat-head screws (Images 3 & 4).
  4. Thread the battery leads through the rectangular cable runs (Image 4 & 5).
  5. Repeat for the other battery holder.

Note: Unless specified, the remainder of the screws are 3Mx8mm pan head srews.

Step 4: Wheels

  1. Test fit your wheel to the stepper shaft (Image 1).
    1. If it is too tight, you can heat the wheel hub with a hair drier or hot air gun and then insert the shaft.
    2. If it is too loose, you can use a 3Mx8mm screw to hold it against the flat of the shaft (Image 2).
    3. If you are a perfectionist, you can calibrate your printer and get it just right.
  2. Place the o-ring around the rim of the wheel (Image 3 & 4).
  3. Repeat for the other wheel.

Step 5: Stepper Brackets

  1. Insert a nut into the stepper bracket and attach them to the top of the chassis with a screw (Image 1).
  2. Insert the stepper into the bracket and attach with screws and nuts.
  3. Repeat for the other bracket.

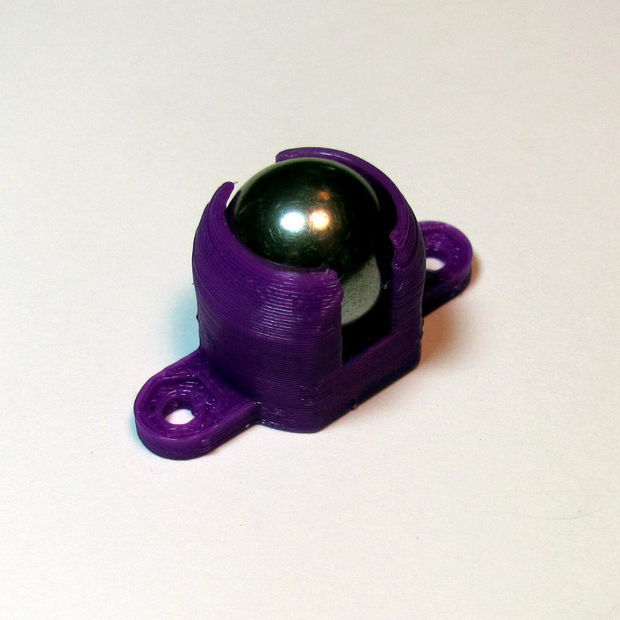

Step 6: Caster

  1. Insert the ball bearing into the caster.
    • Do not force it in or it will break. Use a hair-drier or hot air gun to soften the material if needed.
  2. Attach the caster to the bottom side of the chassis in front of the battery holder.

Step 7: Breadboard

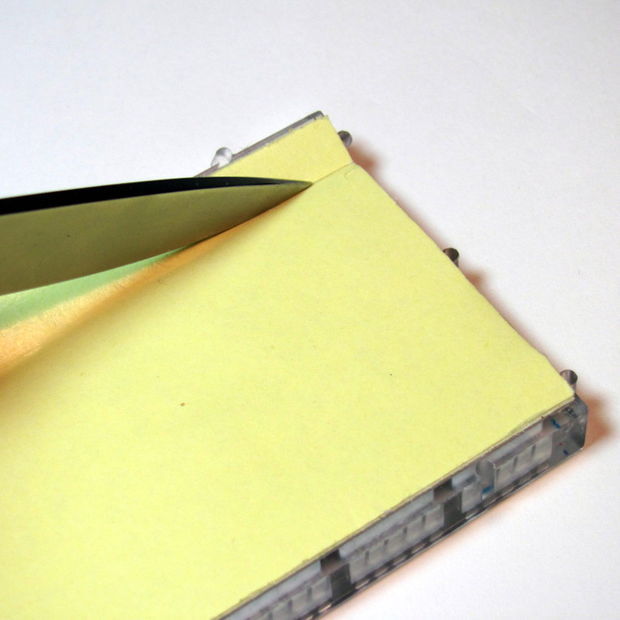

  1. Remove one of the power rails using a sharp knife, cutting through the bottom adhesive (Image 1).
  2. Holding the breadboard over the chassis rails, mark where they intersect the edge (Image 2).
  3. Using a straight edge (like the removed power rail), mark the lines and cut through the backing (Image 3).
  4. Place the breadboard on the chassis with the rails touching the exposed adhesive (Image 4).

Step 8: Power

  1. Place the microcontroller, darlington driver, and power switch on to the bread board (Image 1).
    • I’ve added orange dots for visibility to mark the following:
      • Pin 1 of the darlington driver.
      • The battery pin of the microtroller.
      • The power switch “on” position.
  2. With the right-hand battery leads:
    1. Connect the red line to the first pin of the power switch (Image 2).
    2. Connect the black lead to an empty row between the microcontroller and the darlington chip (Image 2).
  3. With the left-hand battery leads:
    1. Connect the red line to the same row as the black lead of the other battery (Image 3).
    2. Connect the black line to the negative rail of the breadboard (Image 3).
  4. Connect power to the microcontroller:
    1. Red jumper from positive rail to the battery pin (orange dot, Image 4).
    2. Black jumper from the negative rail to the pin marked “G” (Image 4).
  5. Install batteries and switch the power on. You should see the green and red lights of the controller come on (Image 5).

Troubleshooting: If the microcontroller lights do not come on, immediately turn the power off and troubleshoot:

  1. Batteries installed in the correct orientation?
  2. Double check battery leads positioning.
  3. Double check switch leads positioning.
  4. Use a multi-meter to check voltages of batteries.
  5. Use multi-meter to check power rail voltages.

Step 9: Headers and Servo wiring

Male header pins allow us to connect the 5-pin servo JST connectors to power and the darlington driver (Image 1):

  1. The first 5-pin header starts one row in front of the darlington driver.
  2. The second servo header should then line up with the end of the darlington driver.

Before the wiring gets to complicated, lets get the servo wired up:

  1. Add a 3-pin header for the servo on the right edge of the forward section of the breadboard( Image 2).
  2. Add a red jumper from the center pin to the positive side of the power rail.
  3. Add a black or brown jumper from the outer pin to the negative side of the power rail.
  4. Add a colored jumper from the inner pin to Pin 8 of the microcontroller.
  5. Install the servo horn with the shaft to the full clock-wise position and the arm extending to the right-side wheel (Image 3)
  6. Install the servo in the pen holder using the servo’s screws (Image 3).
  7. Connect the servo connector aligning the colors (Image 4).

Step 10: Stepper Control

Time to wire power for the darlington driver and steppers, which will be driven directly from the battery:

  1. Connect a black or brown jumper from the lower right darlington pin to the negative side of the power rail (Image 1).
  2. Connect a red jumper from the upper right darlington pin to the positive side of the power rail.
  3. Connect a red jumper from the upper left pin header to the positive side of the power rail (Image 2).
  4. Connect the left stepper connector to the left side pin header with the red lead on the right side (Image 3).
  5. Connect the right stepper connector to the right side pin header with the read lead on the left side.

Note: The red lead of the stepper connector is the power and should match the red leads on the breadboard.

Step 11: Stepper Control (Continued)

Now we will connect the stepper signal wires from the microcontroller to the input side of the darlington driver:

  1. Starting with Pin 6 of the microcontroller, connect the leads for four control jumpers for the left stepper motor (Image 1).
  2. Match these jumpers to the input side of the darlington on the right. All colors should match with the exception of green, which matches the pink wire of the stepper (Image 2).
  3. Starting with Pin 13 of the microcontroller, connect the leads for the four control jumpers for the right stepper motor (Image (3).
  4. Match these jumpers to the input side of the darlington on the left. All colors should match with the exception of green, which matches the pink wire of the stepper (Image 3).

Step 12: Testing and Calibration

Hopefully you already uploaded the firmware in Step 2. If not, do it now.

The test firmware just draws a square repeatedly so we can check direction and accuracy.

  1. Place your robot on a smooth, flat, open surface.
  2. Turn the power on.
  3. Watch your robot draw squares.

If you are not seeing lights on the microcontroller, go back and troublshoot power as in Step 8.

If your robot is not moving, double check the power connections to the darlington driver in Step 9.

If your robot is moving erratically, double check the pin connections for the microcontroller and darlington driver in Step 10.

If your robot is moving in an approximate square, it is time to put some paper down and put a pen in it (Image 1).

Your calibration points are:

float wheel_dia=66.25;  // mm (increase = spiral out)
float wheel_base=112;   // mm (increase = spiral in)
int steps_rev=128;      // 128 for 16x gearbox, 512 for 64x gearbox

I started with a measured wheel diameter of 65 mm and you can see the boxes rotating inward (Image 2).

I increased the diameter to 67, and you can see it was rotating outward (Image 3).

I eventually arrived at a value of 66.25 mm (Image 4). You can see that there is still some inherent error due to gear lash and such. Close enough to do something interesting!

Step 13: Raising and lowering the pen

We’ve added a servo, but haven’t done anything with it. It allows you to raise and lower the pen so the robot can move without drawing.

  1. Place the pen collar on the pen (Image 1).
  2. If it is loose, tape it in place.
  3. Check that it will touch the paper when the servo arm is lowered.
  4. Check that it will not touch the paper when raised (Image 2).

The servo angles can be adjusted either by removing the horn and re-positioning it, or through the software:

int PEN_DOWN = 170; // angle of servo when pen is down
int PEN_UP = 80;    // angle of servo when pen is up

The pen commands are:

penup();
pendown();

Step 14: Have Fun!

I hope you made is this far without too many curse words. Let me know what you struggled with so I can improve the instructions.

Now it is time to explore. If you look at the test sketch, you will see I have provided you some standard “Turtle” commands:

forward(distance);   // millimeters
backward(distance);
left(angle);         // degrees
right(angle);
penup();
pendown();
done();              // release stepper to save battery

Using these commands, you should be able to do just about anything, from drawing snow flakes or writing your name. If you need some help getting started, check out:

Step 15: Other Platforms

Could this robot be done with a regular Arduino? Yes! I went with the Trinket because of the low cost and small size. If you increase the chassis length, you can fit a regular Arduino on one side and the breadboard on the other (Image 1). It should work pin-for-pin with the test sketch, plus, you now can get to the serial console for debugging!

Could this robot be done with a Rasberry Pi? Yes! This was my first line of investigation because I wanted to program in Python, and be able to control it over the web. Like the full size Arduino above, you just place the Pi on one side, and the breadboard on the other (Image 2). Power becomes the primary concern because four AA is not going to cut it. You need to provide about 1A of current at a stable 5V, otherwise your WiFi module will stop communicating. I’ve found the Model A is much better on power consumption, but I’m still working out how to supply reliable power. If you figure it out, let me know!

Wii 리모컨(Wiimote)으로 RC Car 조종하기 – 2WS (Tamiya M-03)

이젠 벽돌이 되어버린 니텐도 Wii를 되살리기 차원에서 Wii 리모컨을 사용하여 RC Car를 조종하는 프로젝트를 시작해봅니다.

Source를 수정하여 Tamiya M-03 샤시에 적용해 보기로 했습니다.

Circuit@Home에서 소개 받았습니다!

RC car controlled by Wii Remote on Arduino http://www.circuitsathome.com/mcu/rc-car-controlled-by-wii-remote-on-arduino

USB Host를 적용하여 Bluetooth로 직접 연결하는 방식이기 때문에 구성은 매우 간단합니다.

Arduino는 Nano를 사용하였고 USB Host Shield와 연결하기 위해 Mother Board를 하나 꾸며보았습니다.

기능도 조금 추가했습니다.

바나나를 던지거나 하지는 못하지만 “A” 버튼을 누르면 레이저가 발사되듯이 Fire LED가 켜지도록 하였고 “+” 버튼은 Head Light, “-” 버튼은 Back Light로 사용할 수 있도록 하였습니다.

그리고 좌우방향 버튼으로도 Steering이 가능하도록 하였습니다.

 Arrow Up  Left steering
 Arrow Down  Right steering
 Arrow Left  Gear Down
 Arrow Right  Gear Up
 A  Fire & Shutting
 B  –
 +  Head Light
 –  Back Light
 1  Backward
 2  Forward
 Home  Throttle mode change

하드웨어 (Hardware)

송신기 (Transmitter)

  • Wii 리모컨 (Wiimote)

수신기 (Reciver)

  • Arduino Nano

  • USB Host Shield
  • Bluetooth USB 어댑터 (Dongle)

  • DIY Mother Board



통신 거리는 Bluetooth 특성상 대략 10m 정도 밖에 안될 거라고 예상합니다만 그 이상도 충분합니다.



RC Car

  • Tamiya M-03

소프트웨어 (Software)

Arduino 용 라이브러리와 스케치를 포함한 파일은 github 에 있습니다.
이 라이브러리는 Richard Ibbotson이 만든 코드 wiiblue.pde 을 기반으로하고 있습니다.

샘플 스케치 (Sketch)

TwoWheelSterringWii.ino

#include “WiiRemote.h”

#include <MemoryFree.h>

#include <Servo.h>

#define PIN_STEERING_SIGNAL        2

#define PIN_ESC_SIGNAL             4

#define PIN_HEAD_LIGHT_SIGNAL     14

#define PIN_BACK_LIGHT_SIGNAL     15

#define PIN_FIRE_SIGNAL           17

#define PIN_STEERING_SELECT       16

#define SERIAL_DEBUG               0    // 0: active mode, 1: serial debug mode

enum eAngle

{

STEERING_ANGLE_MAX           = 165,   // to right

STEERING_ANGLE_CENTER        = 90,

STEERING_ANGLE_MIN           = 15,    // to left

STEERING_ANGLE_STEP          = 5,

STEERING_ANGLE_MAX_INVERT    = 165,   // to right

STEERING_ANGLE_CENTER_INVERT = 90,

STEERING_ANGLE_MIN_INVERT    = 15,    // to left

THROTTLE_ANGLE_MAX           = 160,   // 80,

THROTTLE_ANGLE_CENTER        = 90,

THROTTLE_ANGLE_MIN           = 10,

};

enum eServoPulse

{

SERVO_PULSE_MAX              = 2400,  // to left

SERVO_PULSE_NEUTRAL          = 1550,  // 1500 Futaba compatible, 1.55msec

SERVO_PULSE_MIN              = 600,   // to right

SERVO_PULSE_MAX_INVERT       = 600,   // to right

SERVO_PULSE_NEUTRAL_INVERT   = 1450,  // 1460 Futaba compatible, 1.55msec

SERVO_PULSE_MIN_INVERT       = 2400,  // to left

};

enum eESCPulse

{

/*

*  Futaba timing

*

*  0us     1072us         1522us          1922us

*   +———*————+-*-+————-*

*   |   n/a   |   forwad   |d|d|   Reverse   |

*   +———*————+-*-+————-*

*          Max Forwad     Neutral         Max Reverse

*

*   d: dead zone, +10us and -10us

*/

ESC_PULSE_NEUTRAL     = 1522,

ESC_PULSE_BRAKE       = 1600,

ESC_PULSE_FWD_MAX     = 800,   //1200, // 1072

ESC_PULSE_FWD_MIN     = 1510,

ESC_PULSE_FWD_3RD     = (ESC_PULSE_FWD_MIN – 240),

ESC_PULSE_FWD_2ND     = (ESC_PULSE_FWD_MIN – 160),

ESC_PULSE_FWD_1ST     = (ESC_PULSE_FWD_MIN – 80),

ESC_PULSE_REV_MAX     = 1700,  // 1922

ESC_PULSE_REV_FIX     = 1650,

ESC_PULSE_REV_MIN     = 1600,

};

enum eGear

{

GEAR_1ST = 1,

GEAR_2ND = 2,

GEAR_3RD = 3,

};

WiiRemote wiiremote;

Servo SteeringServo;

Servo ESC;

void setup()

{

#if SERIAL_DEBUG

Serial.begin(115200);

Serial.print(“\r\nfreeMemory() reports: “);

Serial.print(freeMemory(), DEC);

Serial.println(“Serial connect…”);

#endif

SteeringServo.attach(PIN_STEERING_SIGNAL);

SteeringServo.writeMicroseconds(SERVO_PULSE_NEUTRAL);

ESC.attach(PIN_ESC_SIGNAL);

ESC.writeMicroseconds(ESC_PULSE_NEUTRAL);

pinMode(PIN_HEAD_LIGHT_SIGNAL, OUTPUT);

pinMode(PIN_BACK_LIGHT_SIGNAL, OUTPUT);

digitalWrite(PIN_HEAD_LIGHT_SIGNAL, LOW);

digitalWrite(PIN_BACK_LIGHT_SIGNAL, LOW);

pinMode(PIN_FIRE_SIGNAL, OUTPUT);

digitalWrite(PIN_FIRE_SIGNAL, LOW);

pinMode(PIN_STEERING_SELECT, INPUT);

digitalWrite(PIN_STEERING_SELECT, LOW);

wiiremote.init();

/*

unsigned char wiiremote_bdaddr[6] = {0x00, 0x1e, 0x35, 0xda, 0x48, 0xbc};

wiiremote.setBDAddress(wiiremote_bdaddr, 6);

wiiremote.setBDAddressMode(BD_ADDR_FIXED);

*/

#if SERIAL_DEBUG

Serial.println(“Wiimote connecting…”);

Serial.println(“Please press 1 button and 2 button simultaneously”);

#endif

}

void loop()

{

wiiremote.task(&myapp);

}

int steering_angle          = STEERING_ANGLE_CENTER;

int steering_angle_invert   = STEERING_ANGLE_CENTER_INVERT;

int old_steering_angle      = STEERING_ANGLE_CENTER;

bool analog_throttle        = false;  // false = use “One” button as throttle

int throttle_angle          = THROTTLE_ANGLE_CENTER;

int gear                    = GEAR_1ST;

int pulse_steering;

int pulse_esc;

bool fire                   = false;                  // fire

bool head_light             = false;                  // head light

bool back_light             = false;                  // back light

void myapp(void)

{

#if SERIAL_DEBUG

Serial.print(“\r\n”);

#endif

/* Steering */

steering_angle = getSteeringAngle();

steering_angle_invert = getSteeringAngleInvert();

if (digitalRead(PIN_STEERING_SELECT) == HIGH) {

pulse_steering = map(steering_angle,

STEERING_ANGLE_MIN, STEERING_ANGLE_MAX,

SERVO_PULSE_MAX, SERVO_PULSE_MIN);

SteeringServo.writeMicroseconds(pulse_steering);

} else {

pulse_steering = map(steering_angle_invert,

STEERING_ANGLE_MIN_INVERT, STEERING_ANGLE_MAX_INVERT,

SERVO_PULSE_MAX_INVERT, SERVO_PULSE_MIN_INVERT);

SteeringServo.writeMicroseconds(pulse_steering);

}

if (wiiremote.buttonPressed(WIIREMOTE_UP)) {

steering_angle = STEERING_ANGLE_MIN;

steering_angle_invert = STEERING_ANGLE_MIN_INVERT;

if (digitalRead(PIN_STEERING_SELECT) == HIGH) {

pulse_steering = map(steering_angle, STEERING_ANGLE_MIN, STEERING_ANGLE_MAX, SERVO_PULSE_MAX, SERVO_PULSE_MIN);

SteeringServo.writeMicroseconds(pulse_steering);

} else {

pulse_steering = map(steering_angle_invert, STEERING_ANGLE_MIN_INVERT, STEERING_ANGLE_MAX_INVERT, SERVO_PULSE_MAX_INVERT, SERVO_PULSE_MIN_INVERT);

SteeringServo.writeMicroseconds(pulse_steering);

}

} else if (wiiremote.buttonPressed(WIIREMOTE_DOWN)) {

steering_angle = STEERING_ANGLE_MAX;

steering_angle_invert = STEERING_ANGLE_MAX_INVERT;

if (digitalRead(PIN_STEERING_SELECT) == HIGH) {

pulse_steering = map(steering_angle, STEERING_ANGLE_MIN, STEERING_ANGLE_MAX, SERVO_PULSE_MAX, SERVO_PULSE_MIN);

SteeringServo.writeMicroseconds(pulse_steering);

} else {

pulse_steering = map(steering_angle_invert, STEERING_ANGLE_MIN_INVERT, STEERING_ANGLE_MAX_INVERT, SERVO_PULSE_MAX_INVERT, SERVO_PULSE_MIN_INVERT);

SteeringServo.writeMicroseconds(pulse_steering);

}

}

#if SERIAL_DEBUG

Serial.print(“\tServo=”);

Serial.print(pulse_steering);

#endif

/* Brake and Throttle */

if (wiiremote.buttonPressed(WIIREMOTE_ONE)) {

if (pulse_esc < ESC_PULSE_NEUTRAL) {

// moving forward before press “One”

brake();

pulse_esc = ESC_PULSE_NEUTRAL;

} else {

// while stopping or moving backward, keep moving backward

pulse_esc = ESC_PULSE_REV_FIX;

}

} else {

if (analog_throttle) {

throttle_angle = getThrottleAngle();

pulse_esc = map(throttle_angle,

THROTTLE_ANGLE_MIN, THROTTLE_ANGLE_MAX,

ESC_PULSE_FWD_MIN, ESC_PULSE_FWD_MAX);

} else if (wiiremote.buttonPressed(WIIREMOTE_TWO)) {

switch (gear) {

case GEAR_1ST:

pulse_esc = ESC_PULSE_FWD_1ST;

break;

case GEAR_2ND:

pulse_esc = ESC_PULSE_FWD_2ND;

break;

case GEAR_3RD:

pulse_esc = ESC_PULSE_FWD_3RD;

break;

default:

pulse_esc = ESC_PULSE_NEUTRAL;

break;

}

} else {

pulse_esc = ESC_PULSE_NEUTRAL;

}

}

ESC.writeMicroseconds(pulse_esc);

//delay(15);

#if SERIAL_DEBUG

Serial.print(“\tESC=”);

Serial.print(pulse_esc);

#endif

/* Throttle mode */

if (wiiremote.buttonClicked(WIIREMOTE_HOME)) {

analog_throttle = !analog_throttle;

if (analog_throttle) {

wiiremote.setLED(WIIREMOTE_LED4); // analog mode

} else {

wiiremote.setLED(WIIREMOTE_LED1); // fixed mode, 1st gear

gear = GEAR_1ST;

}

}

/* Shift up or down */

if (!analog_throttle) {

if (wiiremote.buttonClicked(WIIREMOTE_RIGHT)) {

shiftUp();

} else if (wiiremote.buttonClicked(WIIREMOTE_LEFT)) {

shiftDown();

}

}

/* Fire */

if (wiiremote.buttonPressed(WIIREMOTE_A)) {

digitalWrite(PIN_FIRE_SIGNAL, HIGH);

} else {

digitalWrite(PIN_FIRE_SIGNAL, LOW);

}

/* Head light LED */

if (wiiremote.buttonClicked(WIIREMOTE_PLUS)) {

head_light = !head_light;

if (head_light) {

digitalWrite(PIN_HEAD_LIGHT_SIGNAL, HIGH);

} else {

digitalWrite(PIN_HEAD_LIGHT_SIGNAL, LOW);

}

}

/* Back light LED */

if (wiiremote.buttonClicked(WIIREMOTE_MINUS)) {

back_light = !back_light;

if (back_light) {

digitalWrite(PIN_BACK_LIGHT_SIGNAL, HIGH);

} else {

digitalWrite(PIN_BACK_LIGHT_SIGNAL, LOW);

}

}

} // myapp

int getSteeringAngle(void)

{

double rad;

int deg;

rad = acos((double) wiiremote.Report.Accel.Y);

deg = (int) (rad * 180.0 / PI);

/* clipping */

if (deg > STEERING_ANGLE_MAX) { deg = STEERING_ANGLE_MAX; }

if (deg < STEERING_ANGLE_MIN) { deg = STEERING_ANGLE_MIN; }

return deg;

}

int getSteeringAngleInvert(void)

{

double rad;

int deg;

rad = acos((double) wiiremote.Report.Accel.Y);

deg = (int) (rad * 180.0 / PI);

/* clipping */

if (deg > STEERING_ANGLE_MAX_INVERT) { deg = STEERING_ANGLE_MAX_INVERT; }

if (deg < STEERING_ANGLE_MIN_INVERT) { deg = STEERING_ANGLE_MIN_INVERT; }

return deg;

}

int getThrottleAngle(void)

{

double rad;

double compensate_z;

int deg;

rad = asin((double) wiiremote.Report.Accel.Y);

compensate_z = (double) wiiremote.Report.Accel.Z / cos(rad);

rad = asin(compensate_z);

deg = (int) (rad * 180.0 / PI);

/* clipping */

if (deg > THROTTLE_ANGLE_MAX) { deg = THROTTLE_ANGLE_MAX; }

if (deg < THROTTLE_ANGLE_MIN) { deg = THROTTLE_ANGLE_MIN; }

return deg;

}

inline void brake(void)

{

ESC.writeMicroseconds(ESC_PULSE_BRAKE);

delay(15);

ESC.writeMicroseconds(ESC_PULSE_NEUTRAL);

delay(15);

}

inline void shiftUp(void)

{

if (gear < GEAR_3RD) {

gear++;

wiiremote.setLED( (WIIREMOTE_LED1 << (gear – GEAR_1ST)) );

}

}

inline void shiftDown(void)

{

if (gear > GEAR_1ST) {

gear–;

wiiremote.setLED( (WIIREMOTE_LED1 << (gear – GEAR_1ST)) );

}

}

Wii 리모컨(Wiimote)으로 RC Car 조종하기

이젠 벽돌이 되어버린 니텐도 Wii를 바라보다 갑자기 아깝다는 생각이 들어 폭풍 검색을 하다가 Wii 리모컨을 활용할 수 있는 괜찮은 소스를 찾은 것 같아 아래와 같이 소개 합니다.

잘~ 응용하면 재밋는 장난감이 되겠네요.

Circuit@Home에서 소개 받았습니다!

RC car controlled by Wii Remote on Arduino http://www.circuitsathome.com/mcu/rc-car-controlled-by-wii-remote-on-arduino

곳곳에서 Wii 리모컨을 사용한 재미있는 프로젝트를 볼 수 있습니다. PC에서 Bluetooth Stack를 이용한 프로젝트는 많은 있지만, PC를 사용하지 않고 마이컴 (AVR, PIC)에서 Bluetooth Stack를 이용한 프로젝트는 적은 것 같습니다. 그래서 (새삼 느낌입니다 만…) 마리오 카트를 조종하는 느낌으로 무선조종을 만들어 보았습니다. #바나나를 던지거나 하지는 않습니다.

하드웨어 (Hardware)

Arduino에서 Bluetooth Stack을 실현하여 무선조종서보와 ESC를 제어합니다.

송신기 (Transmitter)

  • Wii 리모컨 (Wiimote)

수신기 (Reciver)

  • Arduino
  • USB Host Shield
  • Bluetooth USB 어댑터 (Dongle)

통신 거리는 Bluetooth 특성상 대략 10m 정도 밖에 안될 거라고 예상합니다. 통신 거리를 늘리려면 XBee 등을 사용해야 할 것 입니다.

소프트웨어 (Software)

Arduino 용 라이브러리는 github 에 있습니다.
이 라이브러리는 Richard Ibbotson이 만든 코드 wiiblue.pde 을 기반으로하고 있습니다.
또한 이 라이브러리를 사용하기 위해서는, Oleg Mazurov가 개발 한 라이브러리 가 필요합니다.

샘플 스케치 (Sketch)



SterringWii.ino

#include "WiiRemote.h"
#include <MemoryFree.h>
#include <Servo.h>
#define PIN_STEERING_SIGNAL 2
#define PIN_ESC_SIGNAL  3
#define SERIAL_DEBUG 0
enum eAngle {
  STEERING_ANGLE_MAX    = 165,  // to right
  STEERING_ANGLE_MIN    = 15,   // to left
  STEERING_ANGLE_CENTER = 90,
  STEERING_ANGLE_STEP   = 5,
  THROTTLE_ANGLE_MAX    = 80,
  THROTTLE_ANGLE_MIN    = 10,
  THROTTLE_ANGLE_CENTER = 90,
};
enum eServoPulse {
  SERVO_PULSE_NEUTRAL = 1500, // Futaba compatible, 1.55msec
  SERVO_PULSE_MAX     = 1800, // to left
  SERVO_PULSE_MIN     = 1200, // to right
};
enum eESCPulse {
/*
 *  Futaba timing
 *
 *  0us     1072us         1522us          1922us
 *   +---------*------------+-*-+-------------*
 *   |   n/a   |   forwad   |d|d|   Reverse   |
 *   +---------*------------+-*-+-------------*
 *          Max Forwad     Neutral         Max Reverse
 *
 *   d: dead zone, +10us and -10us
 */
  ESC_PULSE_NEUTRAL = 1522,
  ESC_PULSE_BRAKE   = 1600,
  ESC_PULSE_FWD_MAX = 1200, // 1072
  ESC_PULSE_FWD_MIN = 1510,
  ESC_PULSE_FWD_3RD = (ESC_PULSE_FWD_MIN - 200),
  ESC_PULSE_FWD_2ND = (ESC_PULSE_FWD_MIN - 140),
  ESC_PULSE_FWD_1ST = (ESC_PULSE_FWD_MIN - 80),
  ESC_PULSE_REV_FIX = 1650,
  ESC_PULSE_REV_MAX = 1700, // 1922
  ESC_PULSE_REV_MIN = 1600,
};
enum eGear {
  GEAR_1ST = 1,
  GEAR_2ND = 2,
  GEAR_3RD = 3,
};
WiiRemote wiiremote;
Servo SteeringServo;
Servo ESC;
void setup()
{
#if SERIAL_DEBUG
  Serial.begin(9600);
  Serial.print("\r\nfreeMemory() reports: ");
  Serial.print(freeMemory(), DEC);
#endif
  SteeringServo.attach(PIN_STEERING_SIGNAL);
  SteeringServo.writeMicroseconds(SERVO_PULSE_NEUTRAL);
  ESC.attach(PIN_ESC_SIGNAL);
  ESC.writeMicroseconds(ESC_PULSE_NEUTRAL);
  wiiremote.init();
  /*
  unsigned char wiiremote_bdaddr[6] = {0x00, 0x1e, 0x35, 0xda, 0x48, 0xbc};
  wiiremote.setBDAddress(wiiremote_bdaddr, 6);
  wiiremote.setBDAddressMode(BD_ADDR_FIXED);
  */
}
void loop()
{
  wiiremote.task(&myapp);
}
int steering_angle = STEERING_ANGLE_CENTER;
int old_steering_angle = STEERING_ANGLE_CENTER;
bool analog_throttle = false// false = use "One" button as throttle
int throttle_angle = THROTTLE_ANGLE_CENTER;
int gear = GEAR_1ST;
int pulse_steering;
int pulse_esc;
void myapp(void) {
#if SERIAL_DEBUG
  Serial.print("\r\n");
#endif
  /* Steering */
  steering_angle = getSteeringAngle();
  pulse_steering = map(steering_angle,
                       STEERING_ANGLE_MIN, STEERING_ANGLE_MAX,
                       SERVO_PULSE_MAX, SERVO_PULSE_MIN);
  SteeringServo.writeMicroseconds(pulse_steering);
  //delay(15);
  Serial.print("\tServo=");
  Serial.print(pulse_steering);
  /* Brake and Throttle */
  if (wiiremote.buttonPressed(WIIREMOTE_ONE)) {
    if (pulse_esc < ESC_PULSE_NEUTRAL) {
      // moving forward before press "One"
      brake();
      pulse_esc = ESC_PULSE_NEUTRAL;
    } else {
      // while stopping or moving backward, keep moving backward
      pulse_esc = ESC_PULSE_REV_FIX;
    }
  } else {
    if (analog_throttle) {
      throttle_angle = getThrottleAngle();
      pulse_esc = map(throttle_angle,
                      THROTTLE_ANGLE_MIN, THROTTLE_ANGLE_MAX,
                      ESC_PULSE_FWD_MIN, ESC_PULSE_FWD_MAX);
    } else if (wiiremote.buttonPressed(WIIREMOTE_TWO)) {
      switch (gear) {
       case GEAR_1ST:
        pulse_esc = ESC_PULSE_FWD_1ST;
        break;
       case GEAR_2ND:
        pulse_esc = ESC_PULSE_FWD_2ND;
        break;
       case GEAR_3RD:
        pulse_esc = ESC_PULSE_FWD_3RD;
        break;
       default:
        pulse_esc = ESC_PULSE_NEUTRAL;
        break;
      }
    } else {
      pulse_esc = ESC_PULSE_NEUTRAL;
    }
  }
  ESC.writeMicroseconds(pulse_esc);
  //delay(15);
  Serial.print("\tESC=");
  Serial.print(pulse_esc);
  /* Throttle mode */
  if (wiiremote.buttonClicked(WIIREMOTE_A)) {
    analog_throttle = !analog_throttle;
    if (analog_throttle) {
      wiiremote.setLED(WIIREMOTE_LED4); // analog mode
    } else {
      wiiremote.setLED(WIIREMOTE_LED1); // fixed mode, 1st gear
      gear = GEAR_1ST;
    }
  }
  /* Shift up or down */
  if (!analog_throttle) {
    if (wiiremote.buttonClicked(WIIREMOTE_RIGHT)) {
      shiftUp();
    } else if (wiiremote.buttonClicked(WIIREMOTE_LEFT)) {
      shiftDown();
    }
  }
} // myapp
int getSteeringAngle(void) {
  double rad;
  int deg;
  rad = acos((double) wiiremote.Report.Accel.Y);
  deg = (int) (rad * 180.0 / PI);
  /* clipping */
  if (deg > STEERING_ANGLE_MAX) { deg = STEERING_ANGLE_MAX; }
  if (deg < STEERING_ANGLE_MIN) { deg = STEERING_ANGLE_MIN; }
  return deg;
}
int getThrottleAngle(void) {
  double rad;
  double compensate_z;
  int deg;
    rad = asin((double) wiiremote.Report.Accel.Y);
    compensate_z = (double) wiiremote.Report.Accel.Z / cos(rad);
    rad = asin(compensate_z);
    deg = (int) (rad * 180.0 / PI);
  /* clipping */
  if (deg > THROTTLE_ANGLE_MAX) { deg = THROTTLE_ANGLE_MAX; }
  if (deg < THROTTLE_ANGLE_MIN) { deg = THROTTLE_ANGLE_MIN; }
  return deg;
}
inline void brake(void)
{
    ESC.writeMicroseconds(ESC_PULSE_BRAKE);
    delay(15);
    ESC.writeMicroseconds(ESC_PULSE_NEUTRAL);
    delay(15);
}
inline void shiftUp(void)
{
    if (gear < GEAR_3RD) {
        gear++;
        wiiremote.setLED( (WIIREMOTE_LED1 << (gear - GEAR_1ST)) );
    }
}
inline void shiftDown(void)
{
    if (gear > GEAR_1ST) {
        gear--;
        wiiremote.setLED( (WIIREMOTE_LED1 << (gear - GEAR_1ST)) );
    }
}
