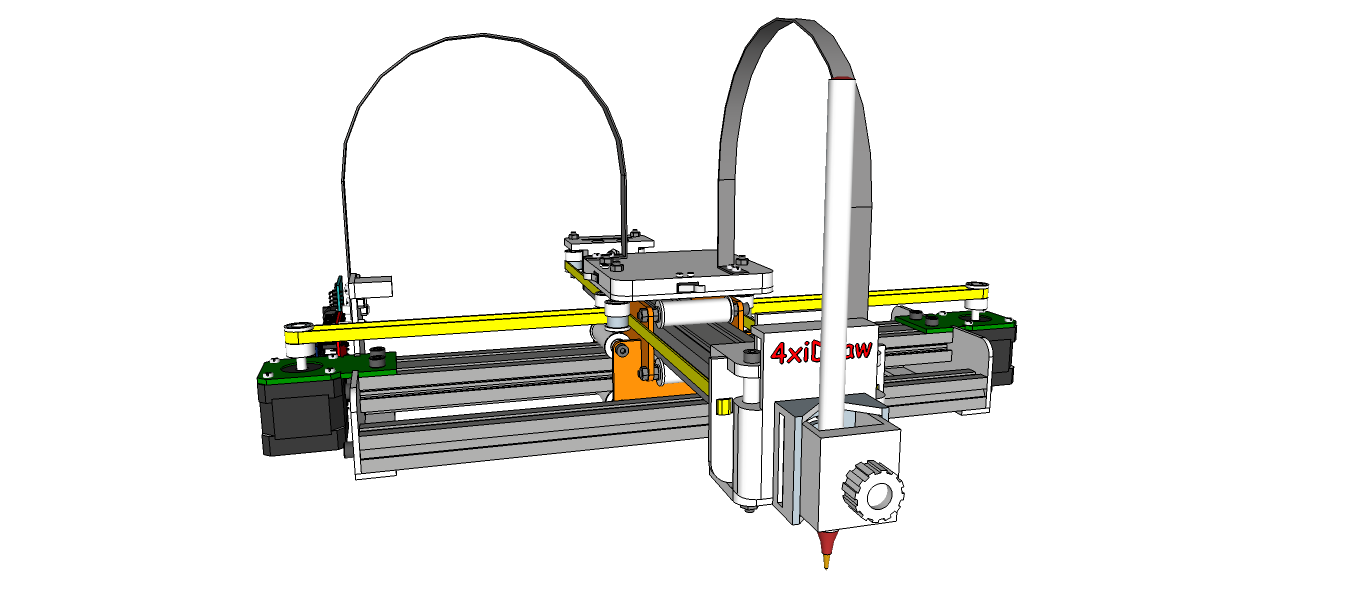

drawMachine eX – Design Concept – 20181211

___
Drawing Machine – drawMachine eX – ProfileBlock™
– w/Laser Cutter and Engraver
___
3D Design Tool: SketchUp Pro

The long awaited extended-travel drawMachine eX!
Usable pen travel (millimeters): 540 × 300 mm

drawMachine eX follows the frame and structure of 4xidraw V1(http://shop.bluecomtech.com/product/4xidraw-v1-a3).
drawMachine eX is an XY plotter using the H-Bot method.
Easy to expand and simple.
It is light and inexpensive because LM Guide is not used.
(Concept: All-In-One Desktop Plotter, Laser Cutter and Engraver)
Use an “Arduino Nano” control board and a “Arduino Nano CNC Shield” board.

Using the “Inkscape” vector graphics program along with a special “plug in”, you can create several G-Code files, starting with a drawing. Universal G-code Sender (Java) will do the rest.

For all “.STL” 3D Parts: Coming soon…. https://www.thingiverse.com/Zalophus/designs

PART LIST:

– 1 x Arduino Nano V3
– 1 x HC-05 Bluetooth Module
– 2 x A4988 Stepper Motor Driver
– 1 x SG90 RC Micro Servo (plus a 250mm cable extender)
– 2 x NEMA17 Stepper Single Shaft 28mm
– 1 x CNC Nano Shield For Arduino Nano (GRBL Compatible)
– 1 x 9V 2A Power Supply
– 4 x AC 125V 1A SPDT Subminiature Micro Lever Switch
– 20 x M8 x 20mm ID 8mm White Nylon ABS Round No Thread Non-Threaded Hollow Standoff Spacer
– 24 x M8 x 16 x 1.4mm White Nylon Washer Plastic Flat Spacer Washer
– 16 x M4 x 15mm ID 4mm White Nylon ABS Round No Thread Non-Threaded Hollow Standoff Spacer
– 2 x GT2 Timing Pulley 20 teeth Bore 5mm
– 2 x GT2 Timing Pulley 20 teeth Bore 8mm
– 4 x GT2 Timing Belt Idler Pulley Without Teeth 20 Teeth Hole Diameter 5mm
– 1 x GT2 Timing Belt 6mm Wide 2mm Pitch 2m
– 8 x Ball Bearing Flanged 4 x 8 x 3mm MF84ZZ
– 8 x Acrylic Plate CNC Parts
– 2 x DF2040-740 ProfileBlock™
– 2 x DF2020-595 ProfileBlock™
– 2 x DF2020-475 ProfileBlock™
– 2 x DF2020-458 ProfileBlock™
– 2 x DRF2020-740 ProfileBlock™
– ? x M5 x XXmm Bolts
– ? x M5 Nuts
– ? x M5 Nuts Nylon
– ? x M4 x XXmm Bolts
– ? x M4 Nuts
– ? x M4 Nuts Nylon
– ? x M3 x XXmm Bolts
– ? x M3 x Nuts Nylon
– 4 x M3 x 20 + 6mm Hex head Brass Spacing Screws Threaded Pillar StandOff Spacer
– 4 x M3 x 8 + 6mm Hex head Brass Spacing Screws Threaded Pillar StandOff Spacer
– 2 x M3 x 50mm OD5mm Rod Aluminum Spacer
– 4 x M2 x 16mm Bolt
– 4 x M2 Flat Washer
– 4 x M2 Spring Washer
– 4 x M2 Nut
– 4 x M2 Nut Nylon
– 1 x Spring
– …

For the download Software:
– Arduino IDE: https://www.arduino.cc/
– GRBL + Servo: https://github.com/cprezzi/grbl-servo
– Inkscape: https://inkscape.org
– Plug-In: http://shop.bluecomtech.com/download
– Line Shading Extension (plugin) for Inkscape: http://shop.bluecomtech.com/download
– SquiggleDraw: https://github.com/gwygonik/SquiggleDraw
– StippleGen: https://wiki.evilmadscientist.com/StippleGen
– Python: http://www.python.it/download/
– Universal G-Code Sender: https://github.com/winder/Universal-G-Code-Sender
– Java: https://www.java.com
– LaserGRBL: https://lasergrbl.com/en/download/

### For more information: http://shop.bluecomtech.com

The open source Drawing Machine – Drawing Machine hardware and software is free and made with love. Please show your level of support with a voluntary donation.

Donate:
https://www.paypal.com/cgi-bin/webscr?cmd=_s-xclick&hosted_button_id=RDN7ZGAVFS5UE

4xiDraw V1 / XLX Drawing Machine

Introducing the 4xiDraw V1 / XLX: A special edition AxiDraw with extended “X” Travel

The 4xiDraw is a simple, modern, precise, and versatile pen plotter, capable of writing or drawing on almost any flat surface. It can write with your favorite fountain pens, permanent markers, and other writing implements to handle an endless variety of applications. Its unique design features a writing head that extends beyond the machine, making it possible to draw on objects bigger than the machine itself. The 4xiDraw V1 / XLX is a special extended edition of the 4xiDraw V1. While identical in all other aspects, it has twice the travel distance in the X direction, for a total travel area of 23.42 × 8.58 inches, or 595 × 218 mm — enough to fit two full end-to-end pages of US Letter or A4 size paper. Note that this is a “long and skinny” plot area: If you are looking for two pages side by side, or using 11 × 17 inch Tabloid/Ledger or A3 size paper, please consider the 4xiDraw V1 / A3instead.





Applications:

4xiDraw is an extremely versatile machine, designed to serve a wide variety of everyday and specialized drawing and writing needs. You can use it for almost any task that might normally be carried out with a handheld pen. It allows you to use your computer to produce writing that appears to be handmade, complete with the unmistakable appearance of using a real pen (as opposed to an inkjet or laser printer) to address an envelope or sign one’s name. And it does so with precision approaching that of a skilled artist, and — just as importantly — using an arm that never gets tired.

  • Personalize and sign diplomas and certificates
    Personalize and sign certificates
  • Formal invitations
    Formal invitations
  • Work with small and irregularly shaped paper
    Work with small and irregularly shaped paper
  • Party invitation with fine-point markers
    Party invitation with fine-point markers
  • Printing text with a fountain pen
    Printing text with a fountain pen
  • Stipple drawing (of Rachel Carson) with pen
    Stipple drawing with pen
  • Precision drawing with rollerball pens
    Precision drawing with rollerball pens

4xiDraw is used by a genuinely diverse range of people, including (to name a few):

  • Digital artists, using 4xiDraw to plot their artwork
  • Celebrities, politicians, and elected officials, using 4xiDraw as a signature machine
  • University officials and other educators, to sign diplomas and certificates
  • Educators, introducing students to digital design and fabrication
  • Real estate and insurance agents, who would very much like you to open their “handwritten” envelopes
  • Online retailers, including a personalized thank you note with your order
  • Hotels that would like to leave a personalized welcome note for guests
  • Makerspaces and hackerspaces, providing a versatile low-cost fabrication tool
  • Tinkerers, extending 4xiDraw beyond writing implements (etching tools, lasers, LEDs for light painting, vacuum pick-up tools, etc.)
  • Pen and ink manufacturers, using 4xiDraw to test their pens and inks
  • Smartphone and tablet hardware makers, using a stylus to test their hardware
  • Mobile device software authors, using a stylus to test their software
  • People without use of their hands, who would like to send “handwritten” letters
  • Woodworkers, laying out joinery markings directly onto wood
  • Research scientists, as a low-cost XY motion platform
  • Galleries, for numbering of limited-edition artwork
  • Calligraphers, who could use a little wrist relief for certain types of busywork

Handling pens and paper:

  • Printable area: 2X US Letter + A4
    Printable area: US Letter + A4 (X2)
  • Pen holder: Vertical configuration
  • Pen holder: 45-degree configuration
  • Pick the right angle for each writing implement
    Pick the right angle for each writing implement

The XY travel (printable area) of the 4xiDraw V1 / XLX is just over twice US letter (8 1/2 × 11″) and A4 (297 × 210 mm) paper sizes: You can think of it as 22 × 8.5″ or 595 × 210 mm size. It can work with any paper up to and including that size, including envelopes, note cards, and business cards — or a whole array of them. The 4xiDraw comes with a mounting easel (board with clips) that can be used for holding paper, cards, and envelopes of various sizes. However, its unique design features a drawing head that extends beyond the body of the machine, making it possible to also draw on flat objects bigger than the machine itself. For example, you can set it right on top of a box to write an address or add decorations. You can even set it on top of a poster board, chalkboard, or whiteboard to draw graphics in place. The pen holder fits a wide variety of pens, including Sharpie fine and ultra-fine point markers, most rollerball and fountain pens, small-bodied whiteboard markers, and so forth. It can even hold a fountain pen at a proper angle of 45° to the paper. You can also use implements that aren’t pens, such as pencils, chalk, charcoal, brushes, and many others. However, you’ll get the best results with instruments such as fountain pens and rollerball pens, which do not require the user to apply pressure.

Getting Started

The 4xiDraw comes fully assembled, tested, and ready to use, right out of the box. A universal-input plug-in power supply is included with the 4xiDraw, as is a USB cable, and an optional paper-holding easel. Assuming that you’ve installed the software first, you can be up and plotting within minutes of opening the box. To operate 4xiDraw, you will need a reasonably modern computer with an available USB port (Mac, Windows or Linux), plus internet access to download necessary software. Pens and paper are not included. (You can use your own! 4xiDraw does not require proprietary pens or paper.) 4xiDraw is normally controlled through a set of extensions to Inkscape, the excellent, popular and free vector graphics program. Basic operation is much like that of a printer driver: you import or make a drawing in Inkscape, and use the extensions to plot your text or artwork. It’s all handled through a straightforward graphical user interface, and works cleanly on Mac, Windows and Linux.

More about 4xiDraw

4xiDraw V1 is the first-generation version of the 4xiDraw, redesigned from the ground up for high performance. It features smooth rolling wheels on custom aluminum extrusions, specially designed for high stiffness and light weight. Its sturdy, rigid construction gives it finer quality output and in most applications allows it to operate with significantly higher precision and speed than competing and previous generation machines. Inspired by and source code from AxiDraw AxiDraw is a project by Evil Mad Scientist Laboratories.

4xiDraw V1 is a clone of the famous Axidraw. It’s a plotter to draw. Used an “Arduino Nano” control card and a “CNC Shield” card. Using the “Inkscape” vector graphics program along with a special “plug in”, you can create several G-Code files, starting with a drawing. Universal G-code Sender (Java) will do the rest. __________________________________________________________

For more details, you can find all the information on Misan’s Instructables page: http://www.instructables.com/id/4xiDraw/__________________________________________________________

4xiDraw machines are designed and manufactured by Zalophus’s DesignHouse, with both foreign and domestic components. 4xiDraw comes with lifetime support. We stand by our machines, and we’re here to help whenever you need it.

What comes with the machine:

  • The 4xiDraw V1/XLX drawing machine, fully assembled, tested, and ready to use.
  • Universal-input plug-in power supply with US-style plug. For other regions, an inexpensive plug shape (but not voltage) adapter will be needed.

Additional specifications:

Performance:

  • Usable pen travel (inches): 23.42 × 8.58 inches (Twice as long as US letter size)
  • Usable pen travel (millimeters): 595 × 218 mm (Twice as long as A4 size)
  • Vertical pen travel: 0.7 inch (17 mm)
  • Maximum XY travel speed, rapid: 11 inches (28 cm) per second.
  • Native XY resolution: 2032 steps per inch (80 steps per mm)
  • Reproducibility (XY): Typically better than 0.005 inches (0.1 mm) at low speeds.

Physical:

  • Major structural components are machined and/or folded aluminum.
  • Holds pens and other drawing instruments up to 5/8″ (16 mm) diameter.
  • Overall dimensions: Approximately 32.5 × 16 × 4 inches (82.5 × 40.5 × 10 cm).
  • Maximum height with cable guides: Approximately 8.5 inches (22 cm).
  • Footprint: Approximately 28 × 3.5 inches (71 x 9) cm.
  • Physical weight: 5.75 Lb (2.6 kg).
  • Dimensional shipping weight: 33 Lb (15 kg).

Software:

  • Drive directly from within Inkscape, using the 4xiDraw extension.
  • Alternative drive software: RoboPaint
  • Compatible with Mac, Windows, and Linux
  • All software free to download and open source
  • Internet access is required to download software

Programming interfaces:

  • Note: programming is not required to use the 4xiDraw.
  • RESTful API available for full machine control, stand-alone or accessible by running RoboPaint in the background.
  • Simplified “GET-only” API available as well, for use in programming environments (such as Scratch, Snap) that permit only retrieval of URLs.
  • Direct EiBotBoard (EBB) command protocol available for use in any programming environment that supports communication with USB-based serial ports.
  • Code that generates SVG files can also be used to (indirectly) control the machine.
